3 Loop Bike Rack | 7 Bikes


This 3-Loop style bike rack will accommodate up to seven bikes. Choose between in-ground and surface mounts.

Category: SKU: 997-206-000-1 Tag:


Up to seven bikes will be able to park in the 3 Loop Bike Rack. No assembly is needed with our contract grade stands! Our heavy-duty wave-style bike racks are a no-assembly, space-saving solution! Furthermore, the one-piece design features sturdy Sch 40 pipe that is completely coated with 1/8+ inch of UV stable, mold-resistant plastisol. For this reason, you will never need to deal with rust! Rain and snow are sealed out for good. This is why we are able to offer a 20 Year Warranty! Choose between surface and in-ground mounts.

surface mount bike racks

The plastisol coating protects the pipe so it will never rust.


  • Space-saving bike rack design
  • Plastisol coating protects bicycles from scratching as well as protects the metal post from rusting.
  • No assembly needed – comes ready to mount in-ground or on concrete
  • Plastisol won’t chip like paint will, so you will never need to paint it!

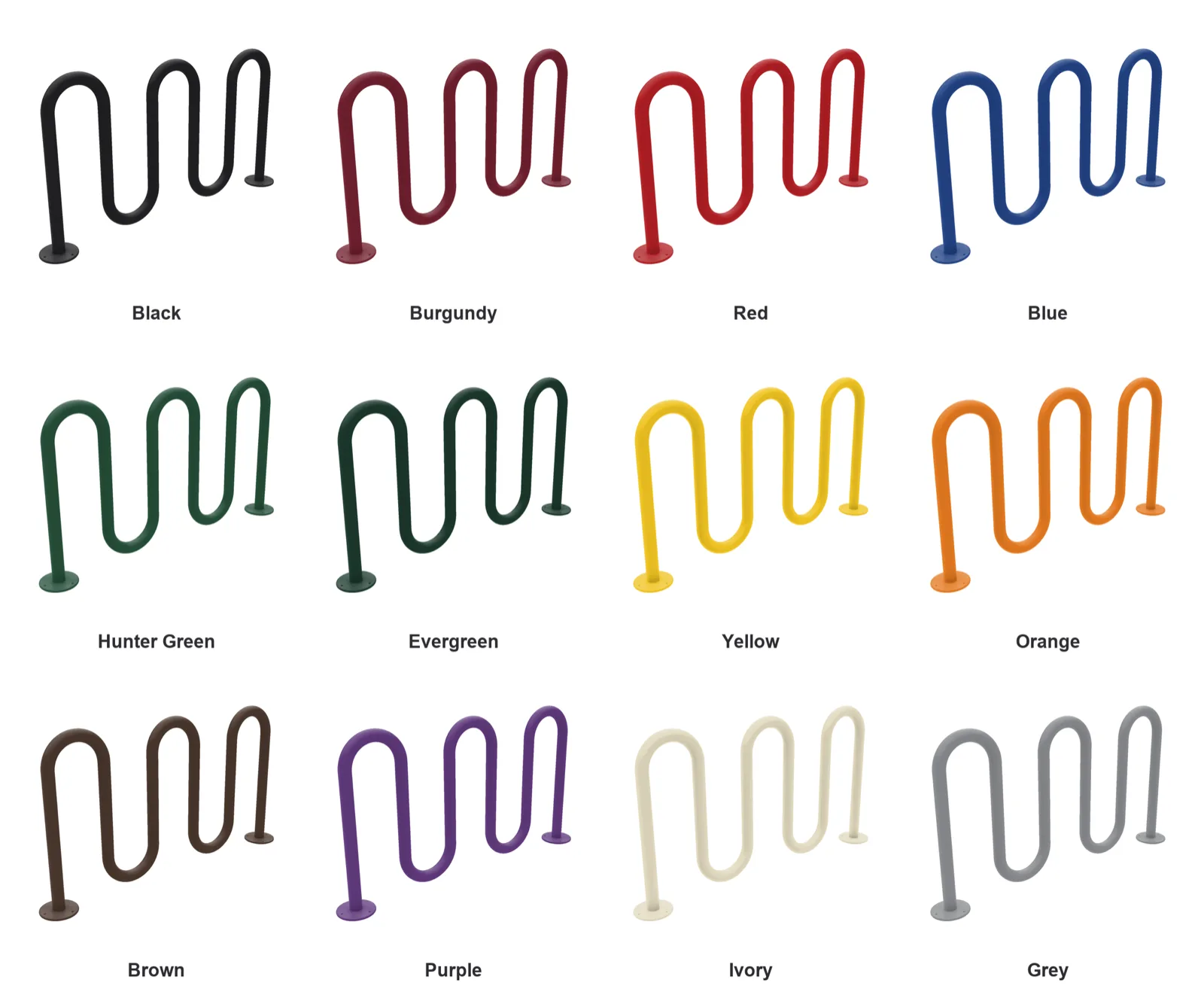

The length of the 3-loop bike rack is 65 inches and the height is 38 inches. Choose either the direct bury (in-ground) mount or the surface mount. Both styles ship in one piece. *Color Disclaimer: Actual product colors may vary from the colors shown on your monitor. Color samples are therefore available upon request.

3 loop bike rack

In-Ground Mount

3 loop bike rack

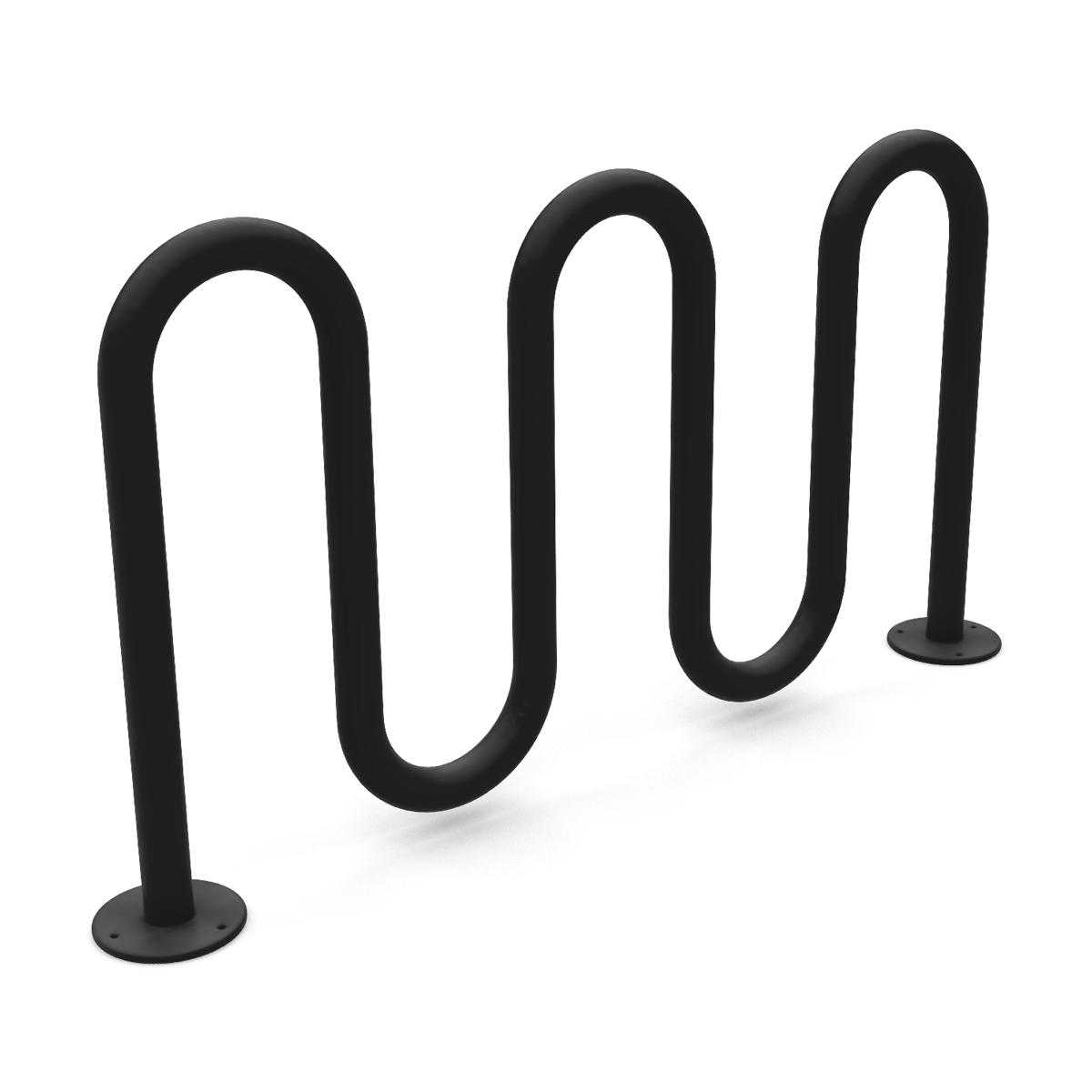

Surface Mount


In-Ground Directions:

  1. Use the bike rack to locate the hole location.
  2. Drill holes in the ground
  3. Support the bike rack in the holes and fill the holes with concrete
  4. Remove the supports after the concrete has been set.

Surface Mount Directions:

  1. Drill plastic out of the mounting holes with a 7/16” dia. drill bit.
  2. Position bike rack where desired
  3. Secure to the surface with the appropriate fasteners.


Additional information

Weight 85 lbs
Dimensions 50 × 66 × 3 in

, , , , , , , , , , ,


Direct Bury, Surface Mount



Bike Capacity
