Access technical specifications, assembly guides, and installation documentation for every Premier Polysteel product. All documents are available as downloadable PDFs organized by product category.
Technical specifications for all Premier Polysteel products are available for download.
For landscape architects and specifiers, our Design Hub offers downloadable CAD and BIM files for project integration.

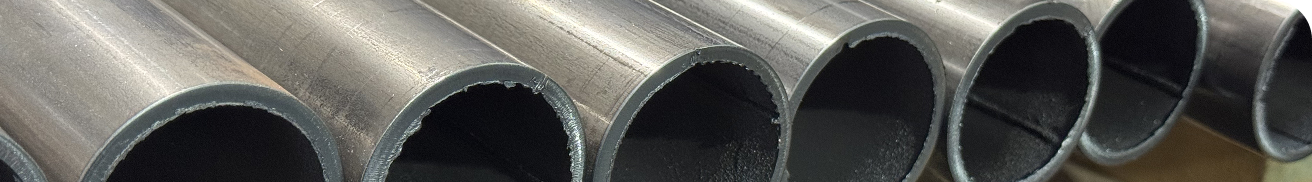

All Premier Polysteel products use HR (hot-rolled) steel construction and are completely plastisol coated — frames and legs included. Pipe only has bolt holes, no other open pipe, preventing access by bees or other insects. Hardware is stainless steel; grade varies by product.
Table Top and Seat: HR steel ¾” #9 standard expanded metal or 14 gauge perforated steel.
Seat Depth: 10″
Attached Perimeter Frame / Supporting Structure: Made from HR steel.
Umbrella Hole: A 2″ schedule 40 pipe is welded in the center of the top. When coated, will accept a 1.625″ diameter umbrella pole (Except 10′ and Single Pedestal In-Ground).
Free Standing Legs: Completely sealed pipe that measures 1.90″ OD prior to plastisol (PVC) coating.
Leg Diagonal Brace: Made of pipe that measures 1.05″ OD prior to plastisol (PVC) coating.
Single Pedestal In-Ground Table: T-Post is made of 4″ pipe;
Table Support Arm: Made of 4″ square tube;
Seat Arms: Made of 2″ square tube. Bottom of post is sealed and has horizontal ½” rebar extensions for securing in concrete.
Double Pedestal In-Ground: Vertical posts are made of 4″ pipe;
Arms: Made of 3″ pipe. Bottom of post is sealed and has horizontal ½” rebar extensions for securing in concrete.
Multi Pedestal In-Ground Table: Post is made of 4″ pipe;
Seat Post: Made of 3″ pipe. Bottom of post is sealed and has horizontal ½” rebar extensions for securing in concrete.
Single Pedestal Surface Mount: Table vertical post is made of 4″ pipe;
Table Support Arm: Made of 4″ square tube;
Seat Arms: Made of 2″ square tube. Bottom of surface mount post has four mounting feet.
Double Pedestal Surface Mount: Vertical posts are made of 4″ pipe;
Arms: Made of 3″ pipe. Bottom of surface mount posts have 8″ diameter mounting plates with gussets.
Multi Pedestal Surface Mount: Table post is made of 4″ pipe;
Seat Post: Made of 3″ pipe. Bottom of surface mount posts have 8″ diameter mounting plates.
Table Top and Seat: HR steel ¾” #9 standard expanded metal or 14 gauge perforated steel.
Seat Depth: 10″
Attached Perimeter Frame / Supporting Structure: Made from HR steel.
Umbrella Hole: A 2″ schedule 40 pipe is welded in the center of the top. When coated, will accept a 1.625″ diameter umbrella pole (free standing only).
Free Standing Legs: Completely sealed pipe that measures 1.66″ OD prior to plastisol (PVC) coating.
X Brace: HR steel.
In-Ground Center Post: 4″ square tube. Top of pipe is sealed. Bottom is sealed and has horizontal ½” rebar extensions for securing in concrete.
Seat and Top Supports: Made of 2″ square tubing — coated to approximately 2-3/8″ OD;
Seat Arms: Made of 4″ OD square tubing.
No Umbrella Hole on In-Ground.
Multi Pedestal In-Ground Table: Post is made of 4″ pipe.
Seat Post: Made of 3″ pipe. Bottom of post is sealed and has horizontal ½” rebar extensions for securing in concrete.
Table Top and Seat: HR steel ¾” #9 standard expanded metal or 14 gauge perforated steel.
Seat Depth: 10″
Attached Perimeter Frame /
Supporting Structure: Made from HR steel.
Umbrella Hole: A 2″ schedule 40 pipe is welded in the center of the top. When coated, will accept a 1.625″ diameter umbrella pole (Free Standing Only).
Free Standing Legs Completely sealed pipe.
Square table: 1.66″ OD prior to plastisol (PVC) coating.
Rectangle table: 1.90″ OD prior to plastisol (PVC) coating.
X Brace (square kid’s table only) is HR steel.
Bench Legs: Made of 1.9″ OD round pipe.
Wall Mount Supports: Made of 1.9″ OD round pipe with 3/16″ × 2″ HR flat and ¼” × 3″ HR flat steel.
Seat and Back: Made of HR steel ¾” #9 standard expanded metal or 14 gauge perforated steel.
Champion Seat Depth: 10″
Supreme Seat Depth: 15″
Attached Perimeter Frame / Supporting Structure: Made from HR steel.
4′ and 6′ Bench Stands: Made of 2-3/8″ OD pipe.
Inline and 45-Degree Bench Stands: Made of 1.66″ OD pipe.
Expanded Seat: HR steel ¾” #9 standard expanded metal
Welded Rod Seat: .192 welded rod
Laser Seat: 14 gauge HR steel
Side Frame: Made of ¼” HR plate.
Width Frame: Made of ¼” × 1″ HR steel.
Swing Frame: Post is 2″ schedule 40 pipe.
Swivel: Galvanized cast iron with bronze bushing.
Chain: 3/16″ proof coil grade 30.
Expanded Metal Seat: HR steel ¾” #9 standard expanded metal
Welded Rod Seat: .192 welded rod
Laser Cut Steel Seat: 14 gauge HR steel
Side Frame: Made of ¼” HR plate.
Width Frame: Made of ¼” × 1″ HR steel.
Expanded Metal Top: HR steel ¾” #9 standard expanded metal
Laser Cut Steel Top: 14 gauge HR steel
Attached Perimeter Frame / Supporting Structure: Made from HR steel.
Expanded Metal Seat: HR steel ¾” #9 standard expanded metal
Welded Rod Seat: .192 welded rod
Laser Seat: 14 gauge HR steel
Side Frame: Made of 10 gauge HR plate
Legs: Made of ½” pipe
Seat and Back: HR steel ¾” #9 flat expanded metal. Seat measures 22-¼” across.
Attached Perimeter Frame / Supporting Structure: Made from HR steel.
Base Frame: Made of 1-¼” pipe.
Gate Style: Ends and bottom rail are made of plastic-coated pipe measuring 2-3/8″ OD. Bike fence is made of plastic-coated pipe measuring 1″ and 2-3/8″ OD.
Loop Style: Made of 2″ (ID) schedule 40 pipe — 2-3/8″ OD prior to coating. Surface mount base plates made of 8″ diameter, 3/16″ HR steel plate solidly welded to the loop. For in-ground, ¼” HR steel cross rods are welded on the pipe below grade to impede movement in a poured concrete foundation.
T-Post Style: Made of 2″ pipe and ½” schedule 40. Base is 3/16″ HR steel plate.
Base: 10 gauge HR steel. Optional surface mounting plate included.
Top: 16 gauge HR steel.
Receptacle Arch Lid: 16 gauge HR steel.
Side Bars: 11 gauge steel.
Hardware: .305 stainless steel.
Expanded Metal Sides (Square Receptacle / Planter): ¾” #9 expanded metal
Round Receptacle Sides: ¾” #9 flat expanded metal
Welded Rod Sides: .192 welded rod
Laser Cut Steel Sides: 12 gauge HR steel
Perforated Sides: 14 gauge steel
All Premier Polysteel products are completely plastisol coated — frames and legs included — with a thick, UV-stabilized, mold- and mildew-resistant plastisol coating that complies with worldwide standards. Coating is applied to a thickness of .125″–.25″ (approximately 1/8″).
| Property | Spec | Standard |
|---|---|---|
| Antimicrobial | Non-Leaching | ASTM G21-90 |
| Tensile Strength | No less than 1,800 psi | ASTM D412 |
| Elongation | No less than 200% | ASTM D412 |
| Tear Strength | No less than 300 lb/in | ASTM D624 |
| Hardness | 90 ± 5 Durometer, Shore A Instant | ASTM D2240 |
| Flammability | Pass | FMVSS 302 |
Each part is washed, dried, and coated in a heat-activated primer.
Each part is dipped into liquid plastisol (PVC).
Each part moves to a convection oven for curing.
Each part passes through a cooling station; all parts receive a coating thickness of approximately 1/8″.
Premier Polysteel is committed to being an environmentally conscious company and continually finds ways to support our environment.
*Please note: Color samples of our plastisol coating are available upon request. Actual product colors may vary from the colors shown on your monitor. To order physical samples, fill out our sample request form and a Premier Polysteel representative will follow up within one business day.
HR steel ¾” #9 standard expanded metal — a single steel sheet slit and stretched to form a diamond pattern.
14 gauge steel — a solid sheet with a uniform pattern of punched holes.
14 gauge HR steel — a solid steel sheet with a pattern laser-cut through it.
192 welded rod — individual steel rods welded together in a parallel pattern.
Browse step-by-step assembly guides by product category, complete with the hardware and mounting details your team needs. Find your product below and download the PDF
